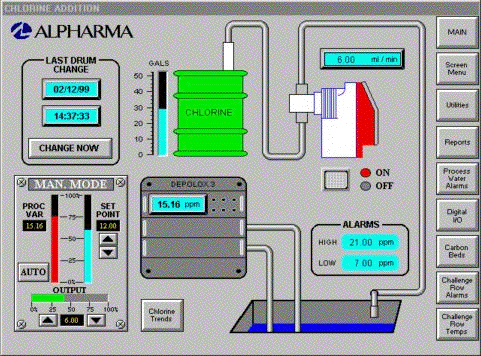

Effluent Chlorination Control Screen





Water leaving the wet lab is chlorinated in a sump for a specified holding time and then released. The rate of chlorine addition can be manually set, or driven by a PID loop to maintain a particular setpoint. Feedback is in ppm. This screen allows the operator to also turn the pump on and off, see if the pump is in fault alarm, set high and low feedback alarms, and change the chlorine drum.
